Client Setup

This guide explains how to configure Lynis clients to send audit reports to your TrikuSec server.

Security Note

TrikuSec uses a read-only model - it only receives audit data from your servers. The only requirement is Lynis, a well-established open-source tool that can be installed via standard package managers. No proprietary agents or additional services are required.

There are two main ways to configure a client:

  1. Using enroll script (Automatic) - Recommended
  2. Manually

Using enroll script (Automatic)

This is the recommended method as it handles dependencies and configuration automatically.

Steps

  1. Choose License: Log in to TrikuSec and go to the Enrollment section. Decide whether to use the Default License (shared) or generate a Specific License for this device (recommended).
  2. Copy Command: Copy the provided command snippet.
  3. Run: Paste it in your device terminal.

Enrollment Command

What the script does

The enrollment script performs the following actions:

  • SSL Configuration: Downloads the Lynis API SSL certificate and saves it to /etc/lynis/trikusec.crt for Lynis client use only (not added to system-wide trust store). Lynis is configured to use this certificate via upload-options=--cacert.
  • Dependencies: Installs required packages (Lynis, etc.).
  • Configuration: Configures the Lynis custom profile (custom.prf) with the correct server URL and license key.
  • First Audit: Performs the first audit with upload enabled (results will appear in TrikuSec).
  • Daily timer (optional): When Enable daily reports (systemd) is toggled on (enabled by default), the script installs the upstream lynis.service/lynis.timer units and enables the timer so reports continue every day.

Configuration

The script behavior can be fine-tuned via Settings - Enroll script configuration in the TrikuSec web interface.

You can configure:

  • Lynis plugins: Custom plugins to download and install.
  • Additional packages: Optional system packages to install (e.g., fail2ban, aide). By default, no additional packages are installed.
  • Skip tests: Specific Lynis tests to skip during audits.

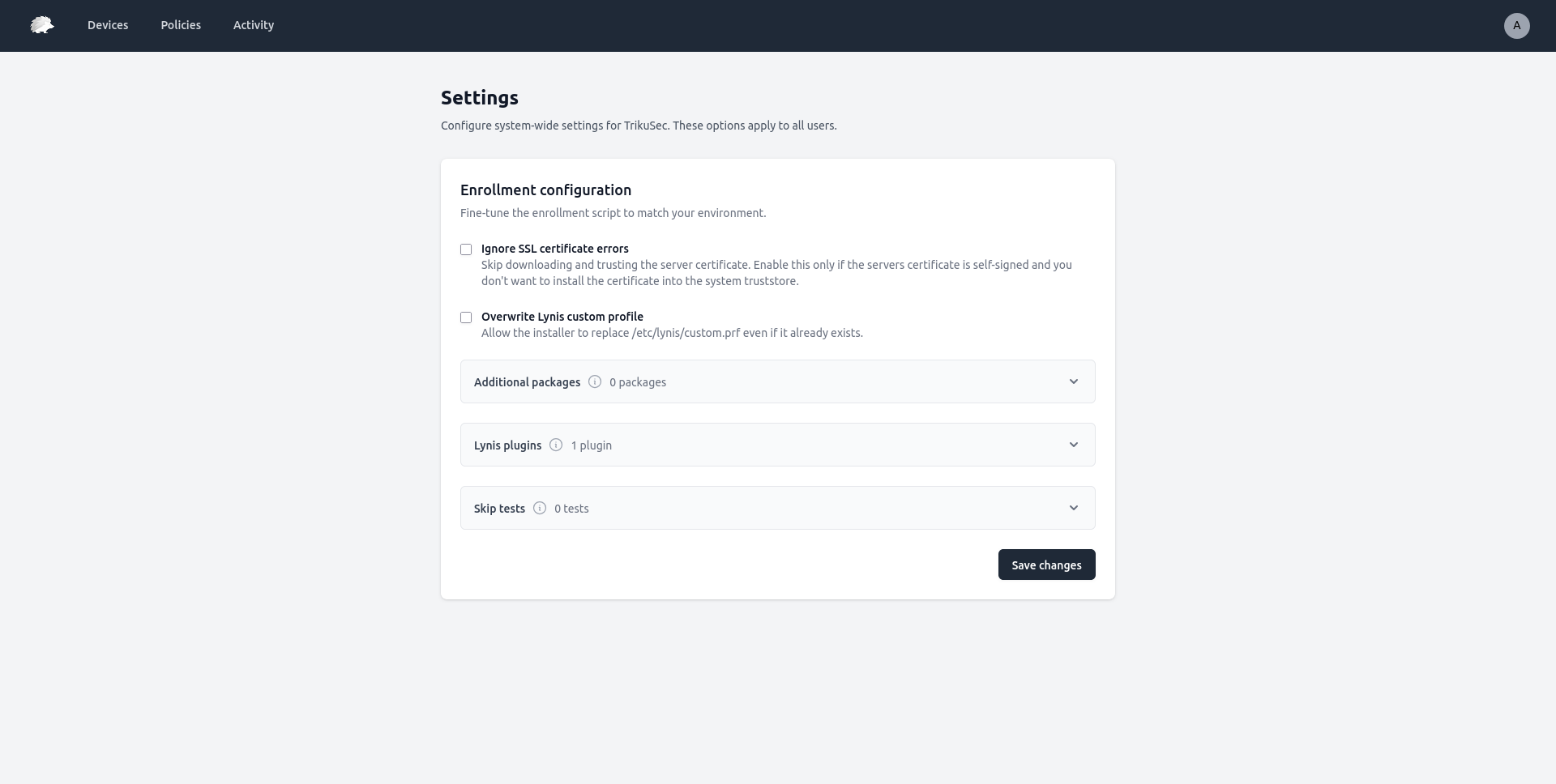

Enrollment Configuration

Manually

If you prefer to configure the client manually, follow these steps.

1. Handle SSL Certificates

If your TrikuSec server uses self-signed certificates, you have two options: * Scope to Lynis (Recommended): Download the server certificate to /etc/lynis/trikusec.crt and configure Lynis to use it via upload-options=--cacert /etc/lynis/trikusec.crt. This limits certificate trust to only the Lynis client. * Ignore Errors: Configure Lynis to ignore SSL errors by adding upload-options=--insecure to the custom profile (see step 3).

Note: These two options are mutually exclusive - use only one of them.

2. Install Lynis

Install Lynis using your package manager:

sudo apt install lynis

3. Configure Custom Profile

You need to create a custom profile file at /etc/lynis/custom.prf. You can obtain the basic parameters (upload-server and license key) from the Enroll section of TrikuSec.

Example content for /etc/lynis/custom.prf:

# Custom profile for TrikuSec
upload=yes

# License key from TrikuSec server
license-key=YOUR_LICENSE_KEY

# Point to the TrikuSec Lynis API server
upload-server=YOUR_SERVER_ADDRESS

# Option 1: Use scoped certificate (recommended for self-signed certs)
upload-options=--cacert /etc/lynis/trikusec.crt

# Option 2: Ignore SSL errors (alternative, less secure)
# upload-options=--insecure

4. Perform First Audit

Run the audit command to generate and upload the first report:

lynis audit system --upload --quick

You can also specify a profile explicitly if needed:

lynis audit system --upload --quick --profile /etc/lynis/custom.prf

Automate Daily Runs (systemd)

Keep Lynis results current by scheduling a daily execution through systemd timers:

Tip: If you leave the Enable daily reports (systemd) toggle enabled in Settings → Enrollment configuration, the automatic enroll script performs steps 1–3 below for you. Use the manual steps only when configuring hosts by hand or after disabling that toggle.

  1. Create service and timer files:
  2. /etc/systemd/system/lynis.service
  3. /etc/systemd/system/lynis.timer

You can copy the reference units shipped by the Lynis project and adapt them to your paths and options as needed.
Source: Lynis systemd units

TrikuSec also ships copies under docs/reference/systemd/ for convenience.

  1. Reload systemd to pick up the new units:
sudo systemctl daemon-reload
  1. Enable and start the timer so it persists across reboots and begins immediately:
sudo systemctl enable lynis.timer
sudo systemctl start lynis.timer
  1. Verify the timer status:
sudo systemctl status lynis.timer
sudo systemctl list-timers lynis.timer

The timer triggers the service once per day by default (adjust OnCalendar in the timer if you need a different cadence), ensuring each client uploads a fresh report to TrikuSec without manual intervention.

Troubleshooting

Connection Issues

If you're having trouble connecting to the server:

  1. Check server URL: Ensure upload-server points to the correct address (default port is 8001 for the API).
  2. Check firewall: Ensure port 8001 (or your configured API port) is open.
  3. Check SSL: If using HTTPS, ensure certificates are valid or use --insecure flag.

License Key Issues

If you get license key errors:

  1. Verify the license key is correct in /etc/lynis/custom.prf.
  2. Check that the license key exists in TrikuSec server.
  3. Ensure the license key hasn't been revoked.

Upload Failures

If uploads fail:

  1. Check network connectivity: curl -k https://yourserver:8001/api/lynis/license
  2. Check server logs: docker compose logs trikusec-lynis-api
  3. Verify the API endpoint is accessible.
